Battery pack PB-960/Quantum cables

Tony Monroy

New member
I am interested in the pin-out of the following cables:

SUNPAK CS5 (for 411, 511, 522, 544, 455, 555, 5000,4205G, 3600, 611)
CANON CZ (Cx) (most Canon Flashes)
METZ CM1 (45CT-5, 45CT-1)
METZ CM4 (45CT-3, 45CT-4, 45CL-1,45CL-3, 45CL-4)
Godox Streaklight version 2 and the old Version 1 cables

I'd like to build cables using the straight 16ft Godox AD-S14 cable


Asher Kelman

OPF Owner/Editor-in-Chief
I am interested in the pin-out of the following cables:

SUNPAK CS5 (for 411, 511, 522, 544, 455, 555, 5000,4205G, 3600, 611)
CANON CZ (Cx) (most Canon Flashes)
METZ CM1 (45CT-5, 45CT-1)
METZ CM4 (45CT-3, 45CT-4, 45CL-1,45CL-3, 45CL-4)
Godox Streaklight version 2 and the old Version 1 cables

I'd like to build cables using the straight 16ft Godox AD-S14 cable
Tony,

What are you trying to get working with this new cable?

In any case, you’ve arrived at one of the few places in this galaxy where anyone might be, at all, (never mind avidly), interested in your quest!

Will Thompson is a dedicated repurposor, modification engineer and wizard. If it’s wired Will can re it any number of ways!

I am not sure he knows the pinouts, but he is likely the very best person to work on the problem.

He may not know the answer immediately but has the skill and experience to modify things so they work! He has never let me down!

Asher


Tony Monroy

New member
I got the pin Assignment from:


Topic Помогите со шнуром между Metz 45 CL-4 и Quantum Turbo 2x2: https://impulsite.ru/viewtopic.php?f=15&t=1557

Metz Cable:


Metz CM1cable


Metz CM4 Cable

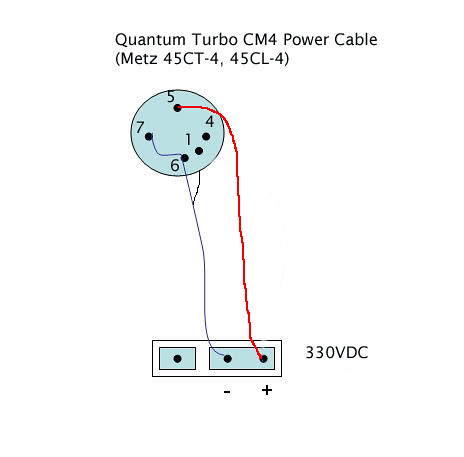

CM4 cable - Quantum Turbo to Metz 45CT-4, 45CL-4.jpg



Sunpack CS5 similar to above but the middle ping is not used on the flash connector.


Asher Kelman

OPF Owner/Editor-in-Chief
Impressive that you could wade through the Russian. What translator did you use or did you “cut and pasted“ as you worked though!


Asher Kelman

OPF Owner/Editor-in-Chief
Tony,

if you use this information to modify lights in a way that others might benefit, then share it here. They would be so appreciated.

I have learned so much from Will Thompson’s inventiveness in the mating of a vintage canon ML3 ring flash with a Godox 200 so we have amazing auto TTL lighting they can be infinitely integrated With any number of Godox lights!

We look forward to corresponding discoveries you might leverage from your research!

Asher
